Smart 3 in 1 Curtain Robot (Wi-Fi)
App Installation
Outsmart® app allows user to have all controls in one single app.
- Search for Outsmart in Google store or Apple store and download it
- Register an account with us. Grant all access to notification, location, wifi and bluetooth for seamless connectivity
- Important Wi-Fi Configuration Note:
Most smart home products, including this device, are compatible with Wi-Fi 2.4GHz networks only. - If you have a combined router:
Please contact your telecom provider for assistance on how to disable Wi-Fi 5GHz to ensure proper connectivity. - Pre-Connection Checklist:Before adding your device, please ensure:✓ Bluetooth is enabled on your mobile phone
✓ Wi-Fi is enabled on your mobile phone
✓ Your mobile phone is connected to your home Wi-Fi network (2.4GHz)

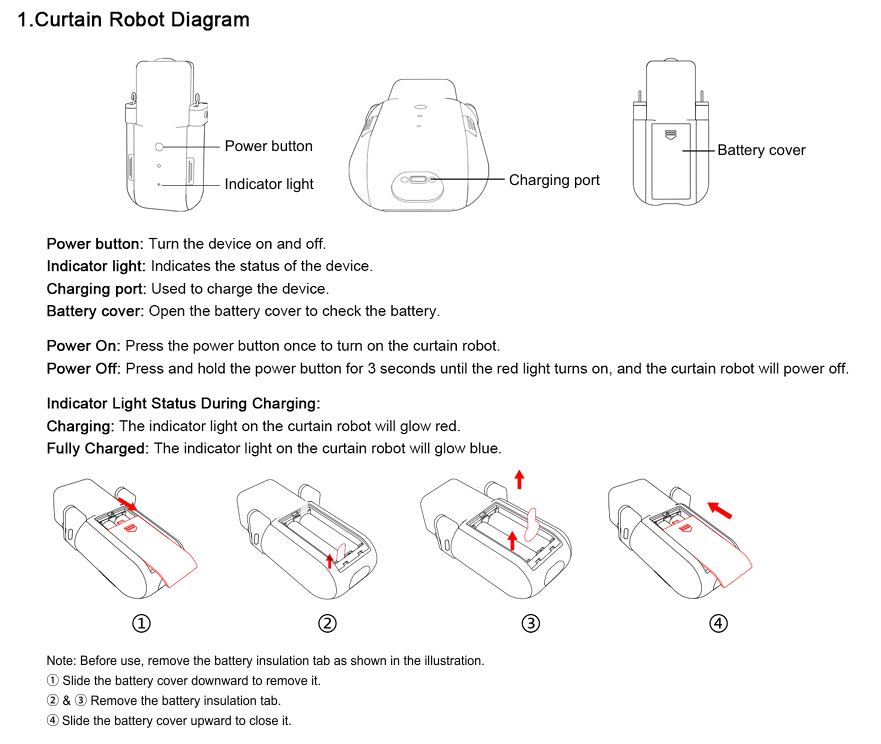

Product Installation
It is recommended to do a first full charge of 6-8 hours before using it, battery should typically last for 3 months for every charge, depending on individual user’s usage.
Recommended to use the charging cable provided in package, because some other type-c cable has a shorter charging head, which may not be fully inserted to the depth of the curtain robot, thus some user may experience device not charging when using their own cable.

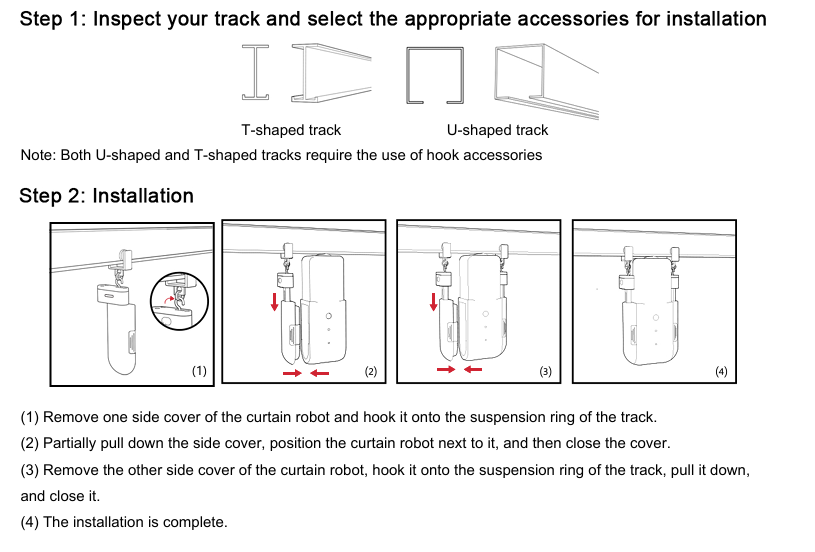

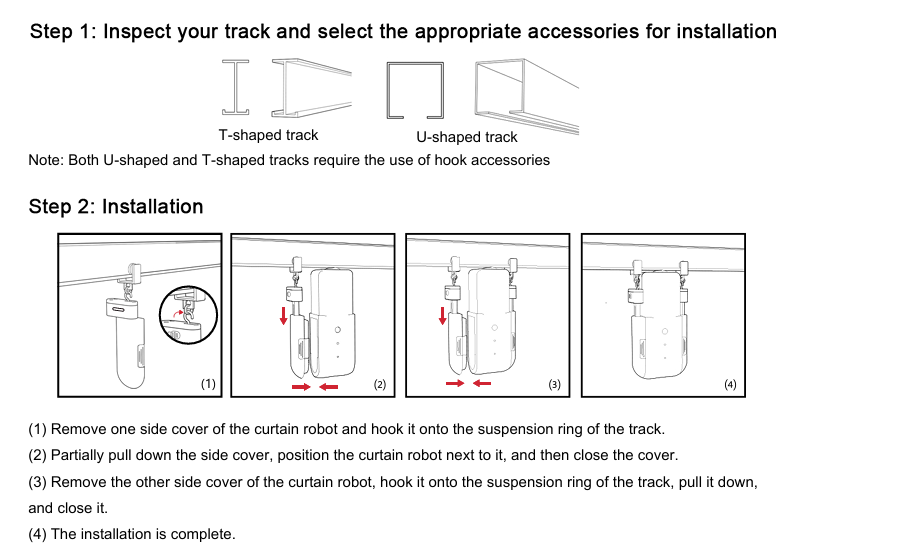

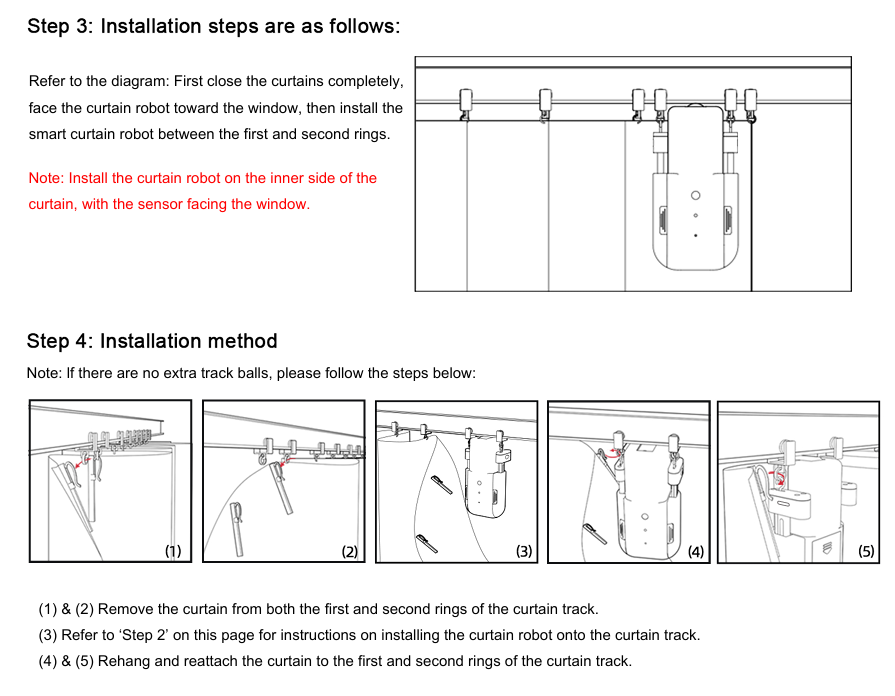

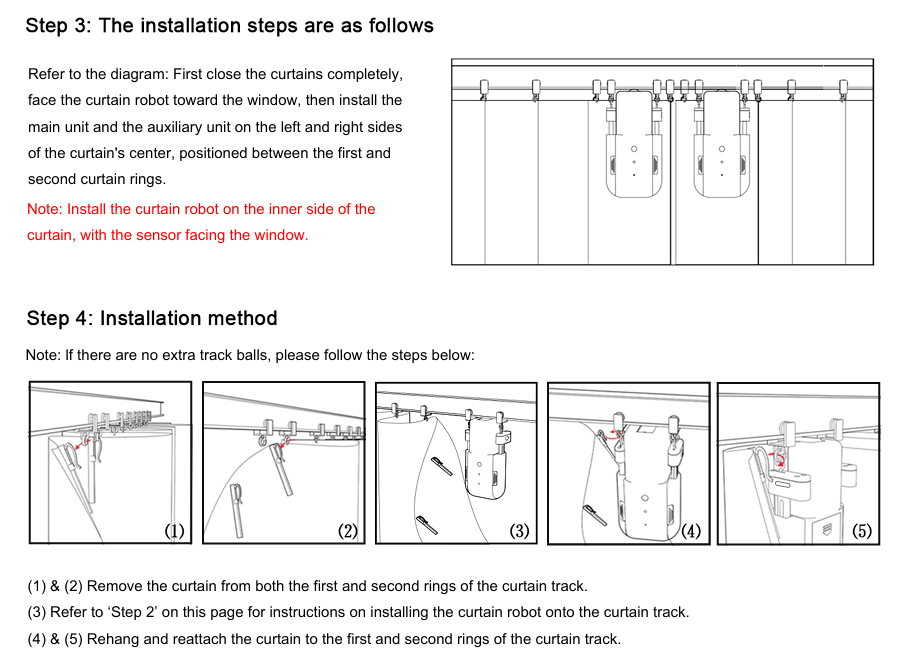

T RAIL INSTALLATION
U RAIL INSTALLATION

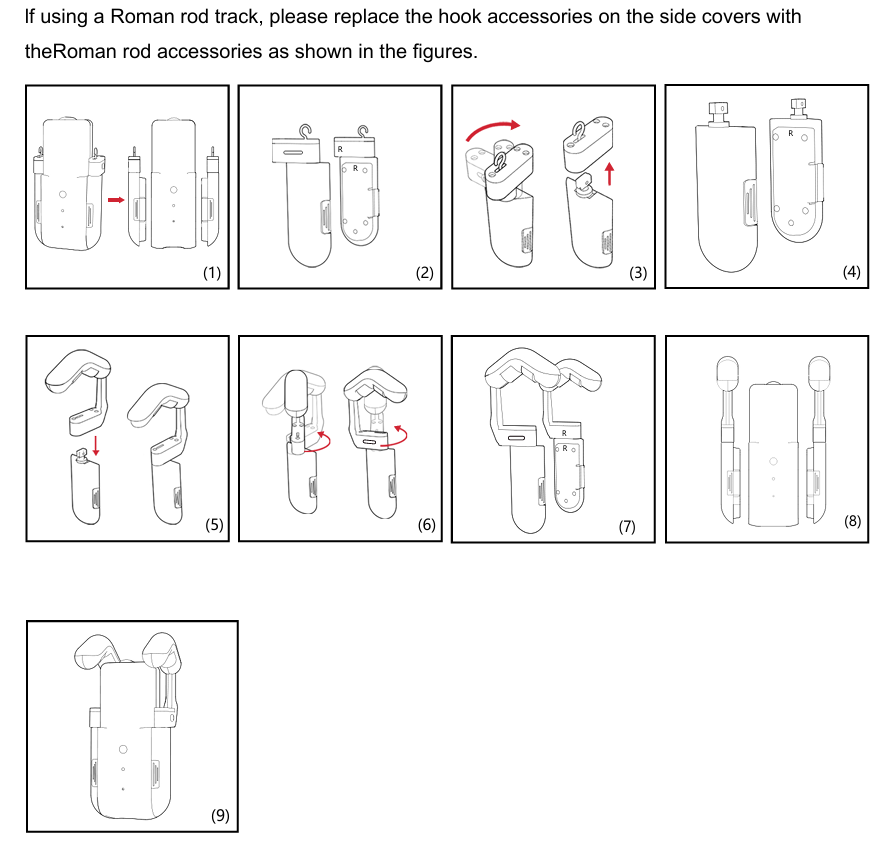

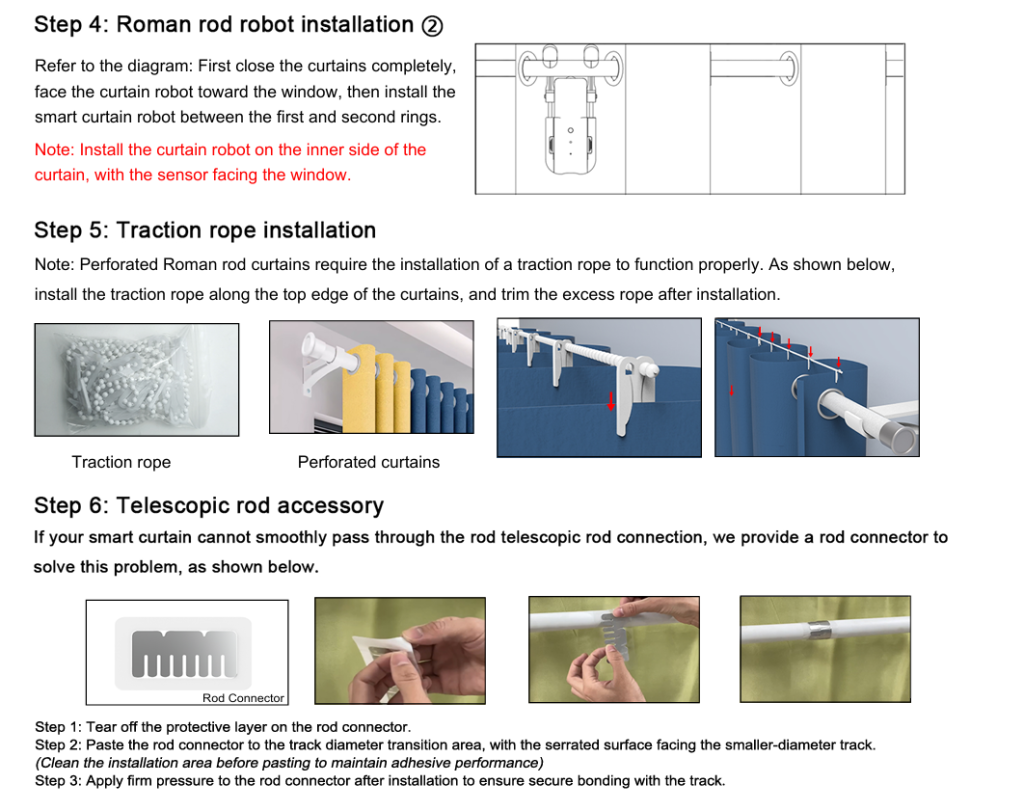

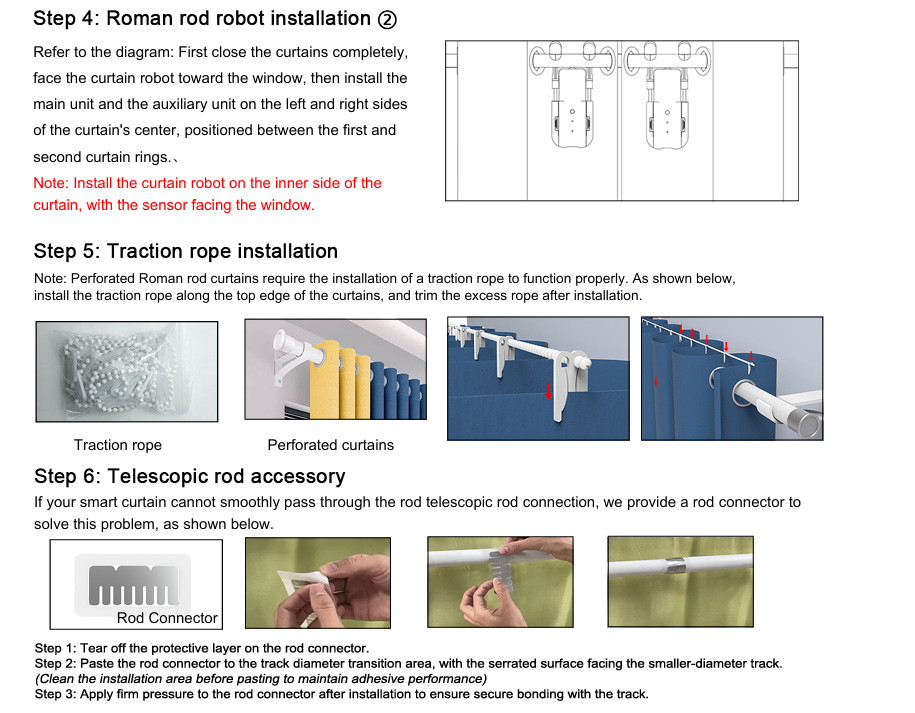

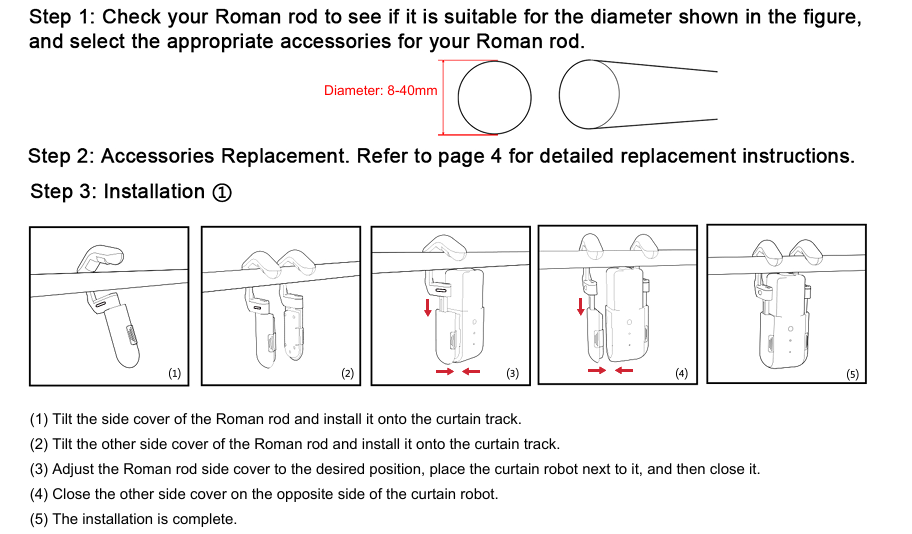

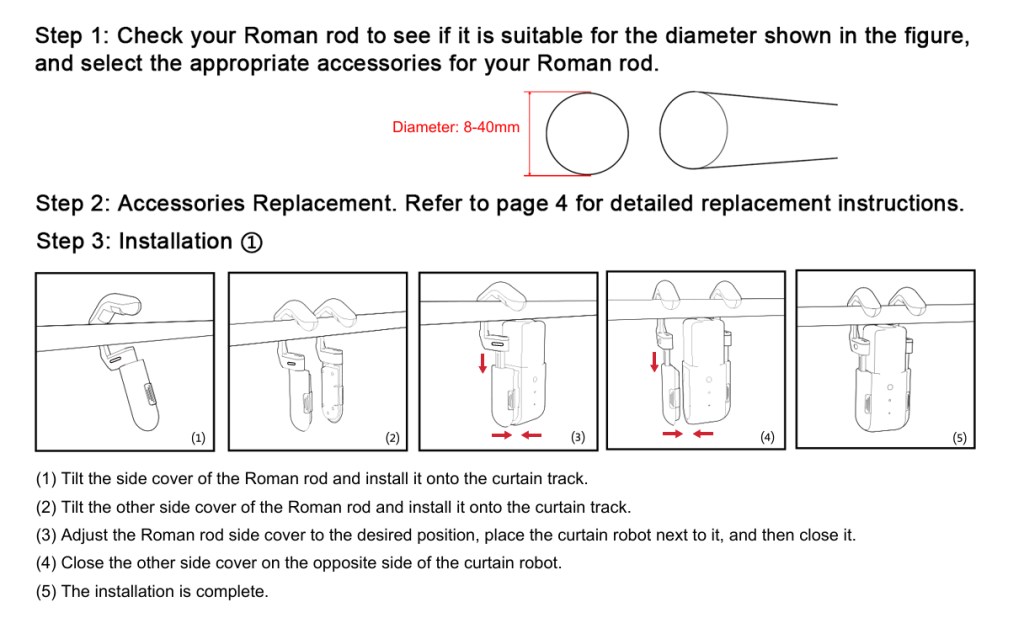

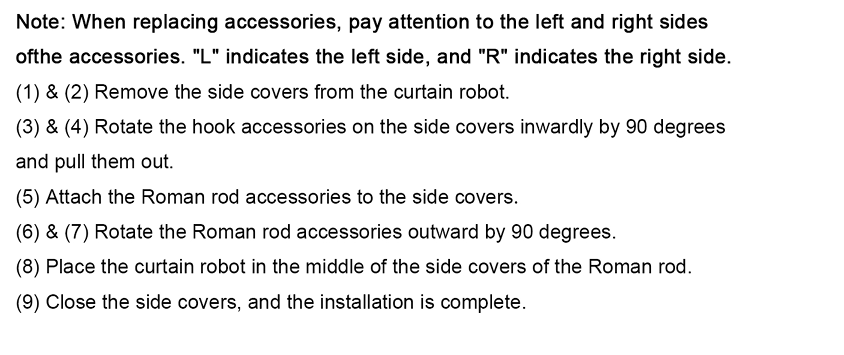

ROMAN ROD INSTALLATION
Reset Device

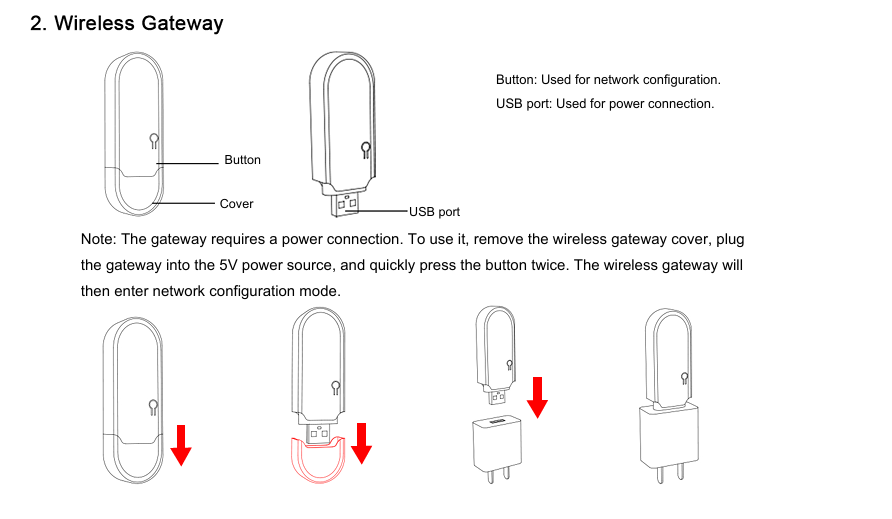

Step 1: Plug in Wifi Gateway into a USB port
Step 2: Double click the reset button of the gateway and indicator light will start to flash
Step 3: Ensure curtain robot has it full charge of 8 hours, now press once on the power button, indicator light will start to flash
Done! Device is ready to be added to app

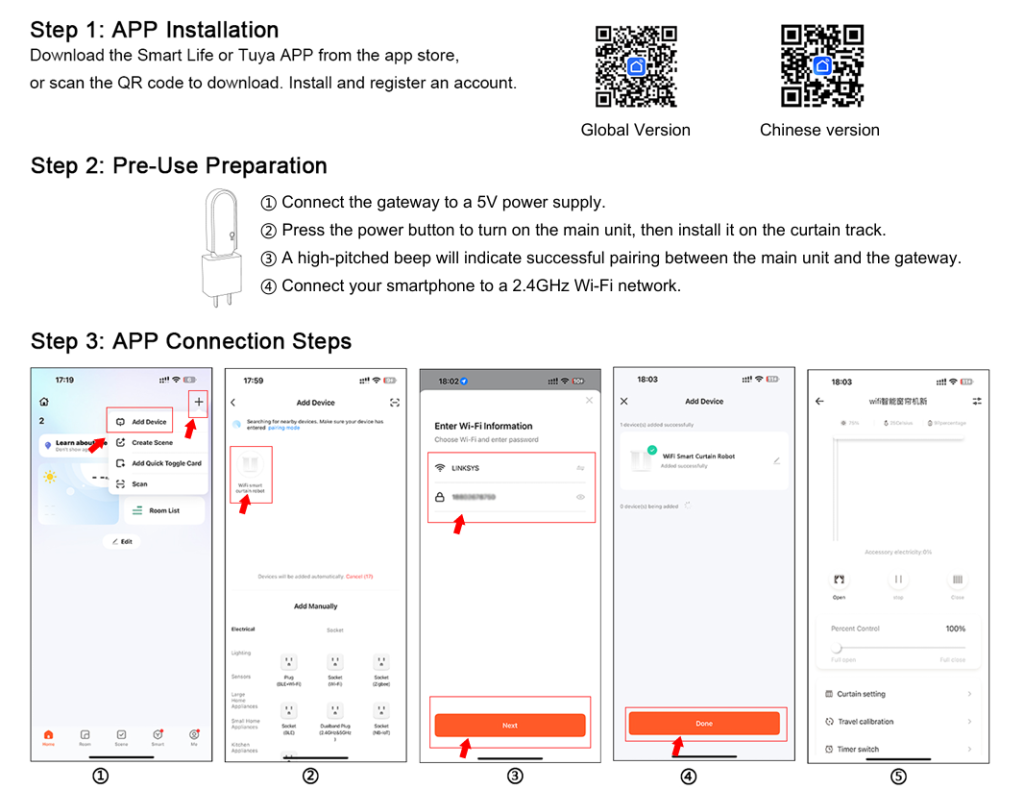

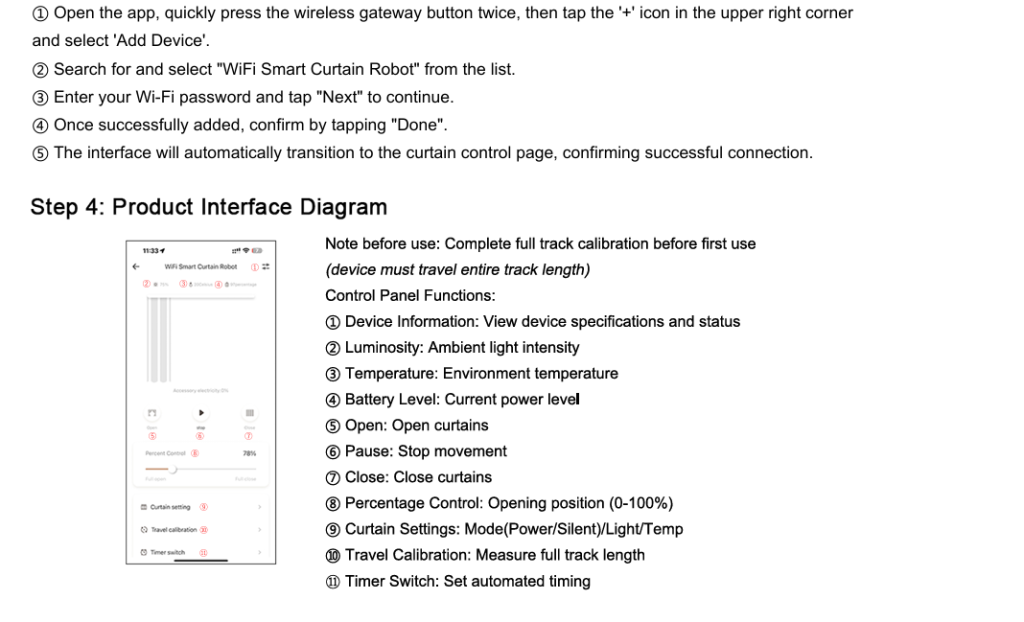

Connect Device
- Tap on the (+) button on top right, then Add Device
- Ensure Wifi and Bluetooth are both turned on
- App will auto discover the product, otherwise, reset the product again
- Ensure mobile phone is connected to your home 2.4ghz wifi only
- Enter the correct password
- Tap next and add
- You are connected !

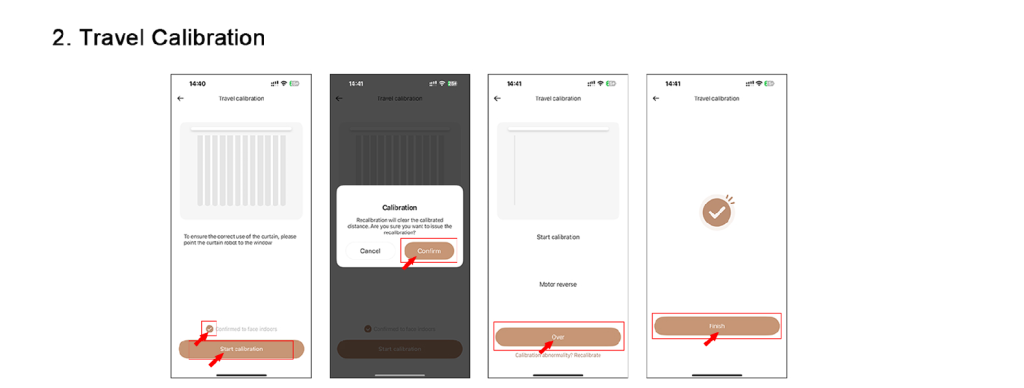

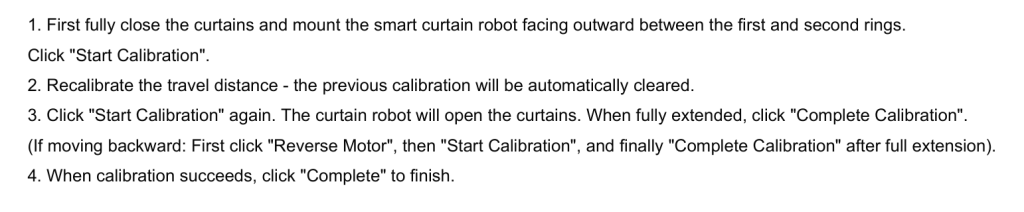

Set Limit
Smart curtain robot is required to learn how much distance to run for every open and close
Step 1: Ensure robot is in fully closed position before pressing any button, if you have already press anything prior, you will need to Reset Device again
Step 2: Tap start to learn
Step 3: Set up complete, now you are able to control it from mobile phone, voice assistance, remote and manual pull
if remote is unable to control curtain robot right away, follow the video below to bind it
pairing were successful but curtain robot is not moving? chances are user accidentally unbind the robot and gateway during the reset.
ensure robot has its full charge and then follow the steps in the video below.
FAQ
- I can’t connect the product, it gets timed out.
- Ensure phone is connected to 2.4ghz wifi only, ensure wifi password is accurate and product position is not too far from router
- Curtain Robot is not moving but shows connected in the app
- Ensure that curtain robot has its full charge, after which, follow the binding video above in this manual, robot may have been unbind from the gateway

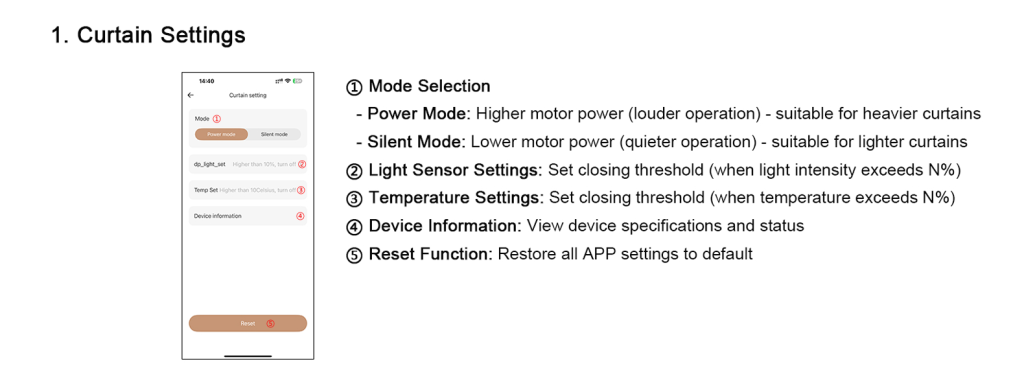

App Function
Set Automation
Smart home is all about automation and allowing your home to have its own schedule. Example: “switch on a light when its raining” “turn off phone charger after 2 hours” “turn on the air conditioner every Friday 9pm”
Set Scene
Smart Scene allows you to be just a click away from anything. It helps you to switch off the air conditioner in living room to wall switch in toilet to computer in your room, with just one click. Every user love the “Come Home Scene and Leave Home Scene” It definitely helps to improve your way of living.
Voice Assistance
What is Smart Home without controlling it with your voice?
Outsmart app is well integrated with authorized partners like Google Home and Amazon Alexa.
Share it
Sharing device made easy with our app. You can share it with anyone who downloaded Outsmart app.
